0.8mm Narrow Bezel Seamless Video Wall , Anti Static 2x2 Lcd Screen
Wall
Features
1,Ultra Narrow Bezels:
A thin-profile design and a screen-to-screen bezel width of as
little as 0.88mm,1.7mm, 1.8mm ,3.5mm and 5.5mm bezel
2,Superior brightness :
High contrast ratios and brightness of up to 7000 nits.
3,Wide viewing angle:
DID LCD panel makes the viewing angle up to 178°.
4,Long service life :
more than 60000 hours life span.
5,Active backlighting system :
Active backlighting technology, which prompts the LED backlight to
adjust automatically to content displayed on the screen.
6,24/7 reliable:
24/7/365 continuous operation.
| LCD Video Wall Screen |
| Specifications |
| Panel Size | 43 46 49 50 55 inch LED LCD screen |
| Narrow Bezel Optional | 1.8mm/3.5mm/5.5mm/8mm/10mm/12mm Optional |
| Max Resolution Support | 1920×1080(H×V) |
| Pixel Pitch | 0.53025×0.53025 |
| Brightness (nits) | 500cd/square meter |
| Contrast | 4000:01:00 |
| Visual Angle (H/V) | 178° / 178° |
| Contrast | 4000:01:00 |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Image |
| Aspect ratio | 16:09 |
| Quality compensation technology | LTI,CTI |
| Motion compensation technology | AUTO MOVE |
| Filter | 3D comb filtering, digital noise reduction |
| Video starnard | PAL,NTSC |
| Video Wall Controller(Built-in each Screen) |
| Digital signal input | HDMI×1; 1920x1080@60Hz backward compatible |
| Computer signal input | VGA(DB-15) ×1;1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible |
| Composite Video Input/(AV) | CVBS(BNC)x1 |
| Composite Video Output | CVBS(BNC)x1 |
| RJ45 | 4 |
| USB | 1(optional) |
| Computer centralized control interface | RS232 |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 230W |
| Structure |
| Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field
interference |
| Installation way | Wall mount, floor standing mount,hanging mount |
| Temperature |
| Working temperature | 0℃~50℃ |
| Storage temperature | -20℃~65℃ |
| Working Humidity | 10%-90% |
Description
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width
between screens
♦ Built-in 3D noise reduction, making the image clean and outline
more vivid

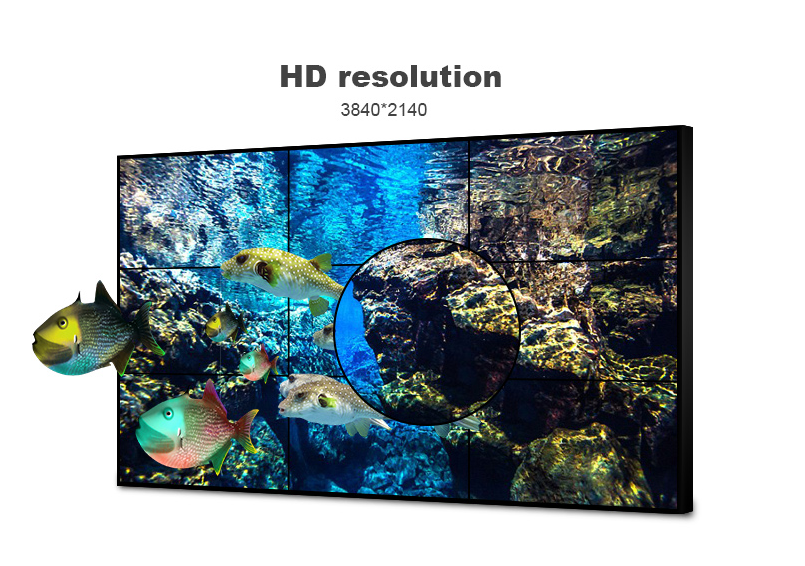

♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity
makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as
well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up
to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport
and install.
♦ Economic al and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best
structural Engineer,we hope to provide you with best screen and
shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the
same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
